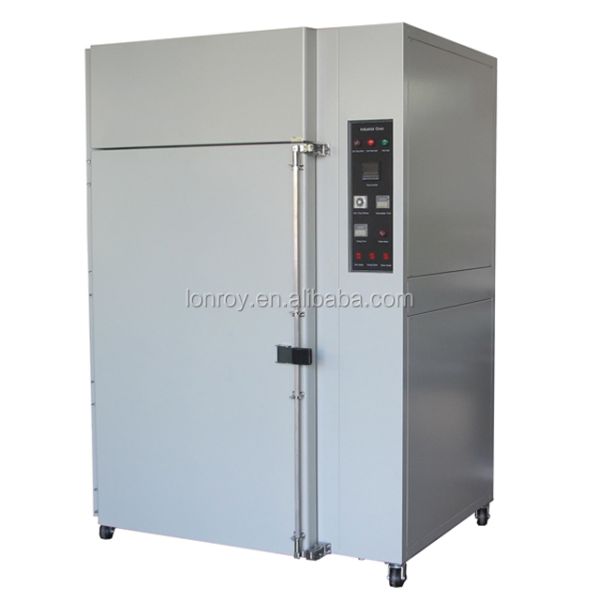

Hot air Cycling Drying Industrial Oven Environment Test Chamber Environmental Testing Equipment

hot air cycling drying industrial oven/Laboratory Oven/Hot Air Oven/Industrial Oven Price

Chamber structure

1.Inner size:1000 W×1500H×1000 D mm;

2.Outside size:1580W(Include electricity box )×2300H(include Motor castor)×1210D mm include door;

3. Control panel: the control box is located on the right side of the machine (as shown);

4. Opening method: single door opens from left to right;

5. Window: no visible window on the door;

6. Inner material: 304# stainless steel sand plate, 1.2mm thick;

7. The external material is: cold-rolled steel plate, 1.2mm thick, and powder painting treatment;(off-white)

8. Separation layer: the inner box is divided into four layers, with the first layer of 100mm from the bottom.

9. Thermal insulation material: high-temperature fiber rock wool, with good thermal insulation effect;

10. The sealing material at the door is: high-temperature resistant silica gel bar;

11. Movable casters and adjustable foot cups are installed at the bottom of the machine.

1. Temperature control instrument is PID digital display instrument (EM705 of taisong instrument in Taiwan), single-point temperature control, automatic calculation, PV/SV display simultaneously, button setting;

2. Timing function setting: 1-9999 (H, M, S) adjustable, time to stop heating and alarm prompt at the same time;

3. Thermal type (K);

4. Signal output is 3-32v;

5. The heating controller is: SSR solid state relay;

6. The heating element is: heat resistant tube;

7, temperature range: normal temperature + 20 ~ 300 ℃ temperature is adjustable;

8, the control precision, plus or minus 0.5 ℃;

9, display precision: 0.1 ℃;

10 and the evenness of temperature in the cabinet: plus or minus 1.0 ℃ %. (no-load test)

11, heating rate, room temperature to 300 ℃, about 40 minutes;

12, the temperature in the cabinet deviation: + / - 3 ℃. (no-load test)

Air supply system

1. Internal hot air circulation, air comes out on the left side of the inner box and returns to the right side;

2. The motor is a special high-temperature resistant type with long shaft, and the motor power is 380V/750W.

3. The wind wheel is a 12-inch multi-wing turbine type;

4. One air inlet of the machine is on the right side of the machine, and one air outlet is on the left side of the machine, with an aperture of 90mm.

hot air cycling drying industrial oven

Power supply device

1. Over-temperature protection system: when the temperature is out of control and the temperature is set beyond the over-temperature protection, the heating power supply will be automatically stopped to protect the safety of products and machines;

2. Circuit protection system: phase loss protection, ground protection, overload protection, circuit break switch, etc.;

3. Door and power cut protection: the machine is in transit. If the door is opened, the machine will be cut off and all work will be stopped.
